A groundbreaking brain implant, dubbed the Biological Interface System to Cortex (BISC), is poised to redefine human-computer interaction and revolutionize the treatment of debilitating neurological conditions such as epilepsy, spinal cord injury, Amyotrophic Lateral Sclerosis (ALS), stroke, and blindness. This pioneering device achieves a paradigm shift by establishing a minimally invasive, ultra-high-bandwidth communication pathway directly to the brain, holding immense potential for advanced seizure control and the restoration of motor, speech, and visual functions. The ingenuity of BISC lies in its unprecedented combination of microscopic size and extraordinary data transmission capabilities. Developed through a formidable collaboration involving Columbia University, NewYork-Presbyterian Hospital, Stanford University, and the University of Pennsylvania, this sophisticated brain-computer interface (BCI) is engineered around a singular silicon chip. This chip acts as a wireless, high-bandwidth bridge, seamlessly connecting the intricate neural landscape of the brain with external computational systems.

The architectural blueprint of BISC is meticulously detailed in a landmark study published on December 8th in the prestigious journal Nature Electronics. The system comprises three core components: the ultra-thin chip-based implant, a discreet wearable "relay station," and the sophisticated software suite essential for its operation. Ken Shepard, a distinguished figure holding professorships in Electrical Engineering, Biomedical Engineering, and Neurological Sciences at Columbia University, who spearheaded the engineering efforts as a senior author, articulated the transformative nature of the implant’s design. "Most implantable systems are built around a canister of electronics that occupies enormous volumes of space inside the body," Shepard explained. "Our implant is a single integrated circuit chip that is so thin that it can slide into the space between the brain and the skull, resting on the brain like a piece of wet tissue paper." This radical departure from conventional bulky implants underscores BISC’s commitment to patient comfort and reduced invasiveness.

Transforming the Cerebral Cortex into a High-Bandwidth Neural Gateway

Shepard’s collaborative efforts were deeply intertwined with those of Andreas S. Tolias, PhD, a senior and co-corresponding author, professor at the renowned Byers Eye Institute at Stanford University, and a co-founding director of the Enigma Project. Tolias’s profound expertise in training artificial intelligence (AI) systems on extensive neural datasets, including those meticulously gathered using BISC, proved instrumental in evaluating the implant’s capacity to accurately decode complex brain activity. "BISC turns the cortical surface into an effective portal, delivering high-bandwidth, minimally invasive read-write communication with AI and external devices," Tolias stated. "Its single-chip scalability paves the way for adaptive neuroprosthetics and brain-AI interfaces to treat many neuropsychiatric disorders, such as epilepsy." This highlights the system’s potential not only for restoration but also for novel therapeutic interventions.

Dr. Brett Youngerman, an assistant professor of Neurological Surgery at Columbia University and a practicing neurosurgeon at NewYork-Presbyterian/Columbia University Irving Medical Center, served as the principal clinical collaborator for this ambitious project. "This high-resolution, high-data-throughput device has the potential to revolutionize the management of neurological conditions from epilepsy to paralysis," he asserted. Youngerman, in conjunction with Shepard and Dr. Catherine Schevon, an epilepsy neurologist at NewYork-Presbyterian/Columbia, has successfully secured a significant grant from the National Institutes of Health (NIH) to pioneer the application of BISC in treating drug-resistant epilepsy. "The key to effective brain-computer interface devices is to maximize the information flow to and from the brain, while making the device as minimally invasive in its surgical implantation as possible. BISC surpasses previous technology on both fronts," Youngerman emphasized, underscoring the dual advantages of enhanced functionality and reduced surgical burden.

Shepard further illuminated the technological leap enabled by advancements in semiconductor technology: "Semiconductor technology has made this possible, allowing the computing power of room-sized computers to now fit in your pocket. We are now doing the same for medical implantables, allowing complex electronics to exist in the body while taking up almost no space." This analogy effectively conveys the dramatic miniaturization and increased power of BISC.

Next-Generation BCI Engineering: A Paradigm Shift in Design

The fundamental operating principle of BCIs involves interfacing with the intricate electrical signals that neurons utilize for communication. Conventional medical-grade BCIs typically necessitate the integration of multiple discrete microelectronic components, including amplifiers, data converters, and radio transmitters. These components are conventionally housed within a relatively substantial implanted canister, which often requires either the removal of a portion of the skull or placement in another bodily location, such as the chest, with subsequent wiring extending to the brain.

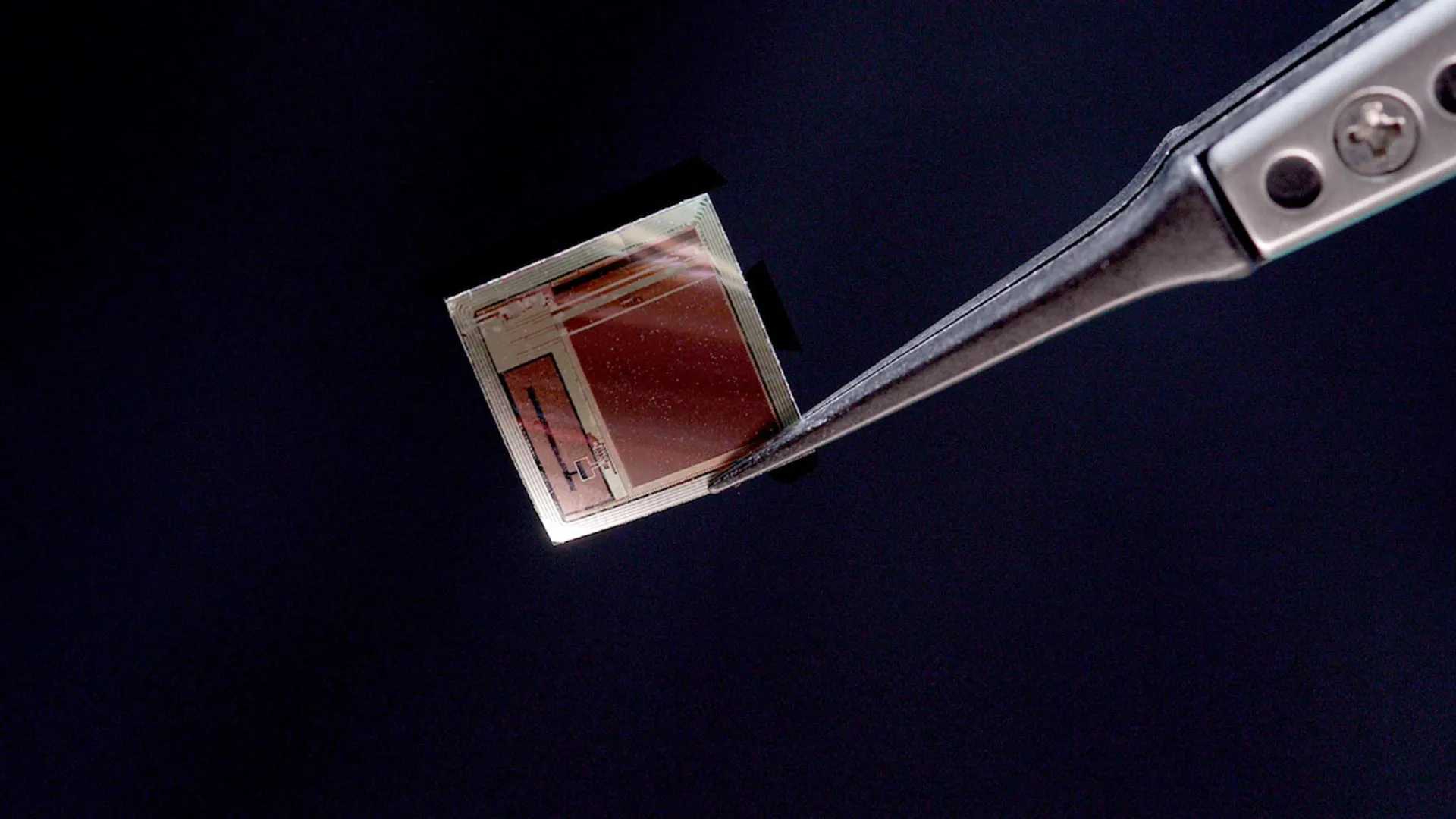

BISC radically redefines this approach. The entire functional system is consolidated onto a single complementary metal-oxide-semiconductor (CMOS) integrated circuit. This chip has been meticulously thinned to a mere 50 micrometers (µm), occupying less than 1/1000th the volume of a standard implant. With an astonishingly compact total volume of approximately 3 cubic millimeters (mm³), this flexible chip possesses the remarkable ability to conform to the undulating surface of the brain. This micro-electrocorticography (µECoG) device is densely populated with an impressive 65,536 electrodes, enabling 1,024 recording channels and an equally significant 16,384 stimulation channels. Critically, the chip’s production leverages established semiconductor industry manufacturing methods, making it inherently suitable for scalable, high-volume production.

The integrated chip ingeniously incorporates a radio transceiver, a wireless power circuit, sophisticated digital control electronics, power management modules, precise data converters, and the essential analog components required for both neural recording and stimulation. The external relay station serves as a vital hub, providing both power and high-speed data communication via a custom ultrawideband radio link. This link achieves an unprecedented data throughput of 100 megabits per second (Mbps), a figure that is at least 100 times greater than that of any other wireless BCI currently available. Operating akin to a standard 802.11 WiFi device, the relay station effectively establishes a seamless bridge between any computer and the brain implant.

BISC further distinguishes itself by incorporating its own proprietary instruction set and a comprehensive software environment, effectively creating a specialized computing system tailored for brain interfaces. The high-bandwidth recording capabilities demonstrated by BISC enable the processing of neural signals by state-of-the-art machine-learning and deep-learning algorithms. These advanced algorithms possess the power to interpret complex human intentions, nuanced perceptual experiences, and intricate brain states with remarkable accuracy. "By integrating everything on one piece of silicon, we’ve shown how brain interfaces can become smaller, safer, and dramatically more powerful," Shepard reiterated, emphasizing the synergistic benefits of this integrated design.

Advanced Semiconductor Fabrication for Unparalleled Performance

The sophisticated fabrication of the BISC implant was achieved using TSMC’s cutting-edge 0.13-µm Bipolar-CMOS-DMOS (BCD) technology. This advanced fabrication methodology uniquely combines three distinct semiconductor technologies onto a single chip, enabling the creation of highly efficient mixed-signal integrated circuits (ICs). This integration allows for the seamless coexistence of digital logic (provided by CMOS), high-current and high-voltage analog functions (enabled by bipolar and DMOS transistors), and robust power devices (from DMOS). This intricate synergy is absolutely critical to BISC’s exceptional performance characteristics.

Transitioning from Laboratory Innovation to Clinical Application

To facilitate the transition of this revolutionary system from the laboratory bench to tangible real-world medical applications, Shepard’s research group forged a crucial partnership with Dr. Youngerman at NewYork-Presbyterian/Columbia University Irving Medical Center. Together, they meticulously developed and refined surgical procedures designed to safely implant the ultra-thin BISC device in preclinical models. These rigorous preclinical studies confirmed the device’s capacity to produce consistently high-quality and stable neural recordings. Importantly, short-term intraoperative studies involving human patients are already actively underway, marking a significant milestone in the device’s clinical validation.

"These initial studies give us invaluable data about how the device performs in a real surgical setting," Dr. Youngerman remarked, highlighting the practical insights gained from these early human trials. "The implants can be inserted through a minimally invasive incision in the skull and slid directly onto the surface of the brain in the subdural space. The paper-thin form factor and lack of brain-penetrating electrodes or wires tethering the implant to the skull minimize tissue reactivity and signal degradation over time." This description emphasizes the profound benefits of BISC’s non-invasive nature on both surgical outcomes and long-term device performance.

Extensive preclinical investigations focused on the motor and visual cortices were conducted in close collaboration with Dr. Tolias and Bijan Pesaran, a professor of Neurosurgery at the University of Pennsylvania. Both Tolias and Pesaran are recognized as preeminent leaders in the fields of computational and systems neuroscience, bringing invaluable expertise to the project. "The extreme miniaturization achieved by BISC is very exciting as a platform for new generations of implantable technologies that also interface with the brain with other modalities such as light and sound," Pesaran commented, foreseeing BISC as a foundational technology for future multimodal brain interfaces.

The development of BISC was generously supported by the Neural Engineering System Design program of the Defense Advanced Research Projects Agency (DARPA). The project further benefited from Columbia University’s profound expertise in microelectronics, the pioneering neuroscience programs at Stanford and Penn, and the exceptional surgical capabilities of NewYork-Presbyterian/Columbia University Irving Medical Center, underscoring the interdisciplinary nature of this groundbreaking achievement.

Commercialization and the Future of Brain-AI Integration

To accelerate the path towards widespread practical adoption, researchers from Columbia and Stanford have established Kampto Neurotech. This innovative startup was founded by Dr. Nanyu Zeng, a distinguished Columbia electrical engineering alumnus and one of the principal engineers on the BISC project. Kampto Neurotech is currently focused on producing research-ready versions of the BISC chip and is actively seeking investment to support the rigorous process of preparing the system for eventual use in human patients. "This is a fundamentally different way of building BCI devices," stated Zeng, emphasizing the disruptive nature of BISC’s design. "In this way, BISC has technological capabilities that exceed those of competing devices by many orders of magnitude."

As artificial intelligence continues its rapid and transformative advancement, BCIs are increasingly recognized for their dual potential: not only in restoring lost sensory and motor functions in individuals with neurological disorders but also in enabling future applications that could enhance normal human capabilities through direct brain-to-computer communication. "By combining ultra-high resolution neural recording with fully wireless operation, and pairing that with advanced decoding and stimulation algorithms, we are moving toward a future where the brain and AI systems can interact seamlessly — not just for research, but for human benefit," Shepard concluded optimistically. "This could change how we treat brain disorders, how we interface with machines, and ultimately how humans engage with AI." This vision encapsulates the profound societal implications and transformative potential of the BISC technology.
