Lidar technology, a cornerstone of modern autonomous systems, employs precise pulses of infrared light to meticulously gauge distances and construct intricate three-dimensional maps of the surrounding environment. This sophisticated capability empowers self-driving vehicles to discern and react to potential obstacles with remarkable alacrity. However, the widespread adoption of lidar has been hampered by inherent limitations: conventional lidar sensors are often bulky, prohibitively expensive, and frequently incorporate delicate moving components susceptible to wear and tear over time. These challenges have restricted their application across a broader spectrum of use cases.

Now, a groundbreaking advancement from researchers at the Massachusetts Institute of Technology (MIT) offers a compelling solution, paving the way for lidar sensors that are not only significantly smaller and more robust but also entirely devoid of moving parts. The core of this innovation lies in a novel silicon-photonics chip, a sophisticated semiconductor device engineered to manipulate light rather than electrical signals.

Existing lidar systems that leverage silicon-photonics chips typically suffer from a restricted field of view, struggling to effectively scan areas situated towards the periphery of a given scene. Previous endeavors to broaden this scanning range have often been plagued by the introduction of undesirable noise and a detrimental reduction in measurement accuracy. The MIT team has ingeniously circumvented these issues by developing an innovative array of integrated antennas. This novel design significantly curtails unwanted crosstalk, a phenomenon where adjacent antennas inadvertently interfere with each other. The result is a chip capable of scanning a much wider field of view while producing substantially less noise compared to other silicon-photonics-based approaches.

A Compact Lidar System with an Expansive Perspective

This pioneering development holds immense promise for the creation of more sophisticated lidar sensors, poised to revolutionize demanding applications such as autonomous vehicle navigation, high-resolution aerial mapping, and the meticulous monitoring of dynamic construction sites. Jelena Notaros, the Robert J. Shillman Career Development Associate Professor of Electrical Engineering and Computer Science (EECS) at MIT and a key member of the Research Laboratory of Electronics, eloquently articulated the significance of their work. She stated, "The functionality we demonstrated in this work solves a fundamental problem for integrated optical-phased-array technology, enabling future lidar sensors that can achieve significantly higher performance than we could demonstrate previously."

The comprehensive study detailing this breakthrough features lead author and EECS graduate student Henry Crawford-Eng, alongside fellow EECS graduate students Andres Garcia Coleto, Benjamin M. Mazur, Daniel M. DeSantis, and Tal Sneh. The findings of their extensive research were recently published in the esteemed journal Nature Communications.

Unraveling the Mechanics of Lidar’s Environmental Mapping

Many conventional lidar systems rely on a substantial rotating unit to precisely direct light pulses across a defined scene. As these light pulses encounter nearby objects, they reflect back towards the sensor. The analysis of these returning signals provides the crucial data required to reconstruct a detailed and accurate map of the surrounding environment.

In contrast, silicon-photonics-based lidar operates on a fundamentally different principle. Instead of employing mechanical rotation, it electronically scans a beam of light in multiple directions using a sophisticated system known as an integrated optical phased array (OPA). At the heart of an OPA lies a carefully arranged collection of integrated antennas. Each antenna is intricately designed with minuscule, regularly spaced variations along its length, referred to as corrugations. These corrugations meticulously scatter light from an input source, directing it upward and out of the photonic chip. The direction of this outgoing beam can be precisely controlled by manipulating the phase of the light transmitted to each individual antenna. By subtly adjusting these phases, the angle at which the array emits light can be altered, enabling the beam to be steered without any physical movement of components.

The Intricate Challenge of Antenna Spacing

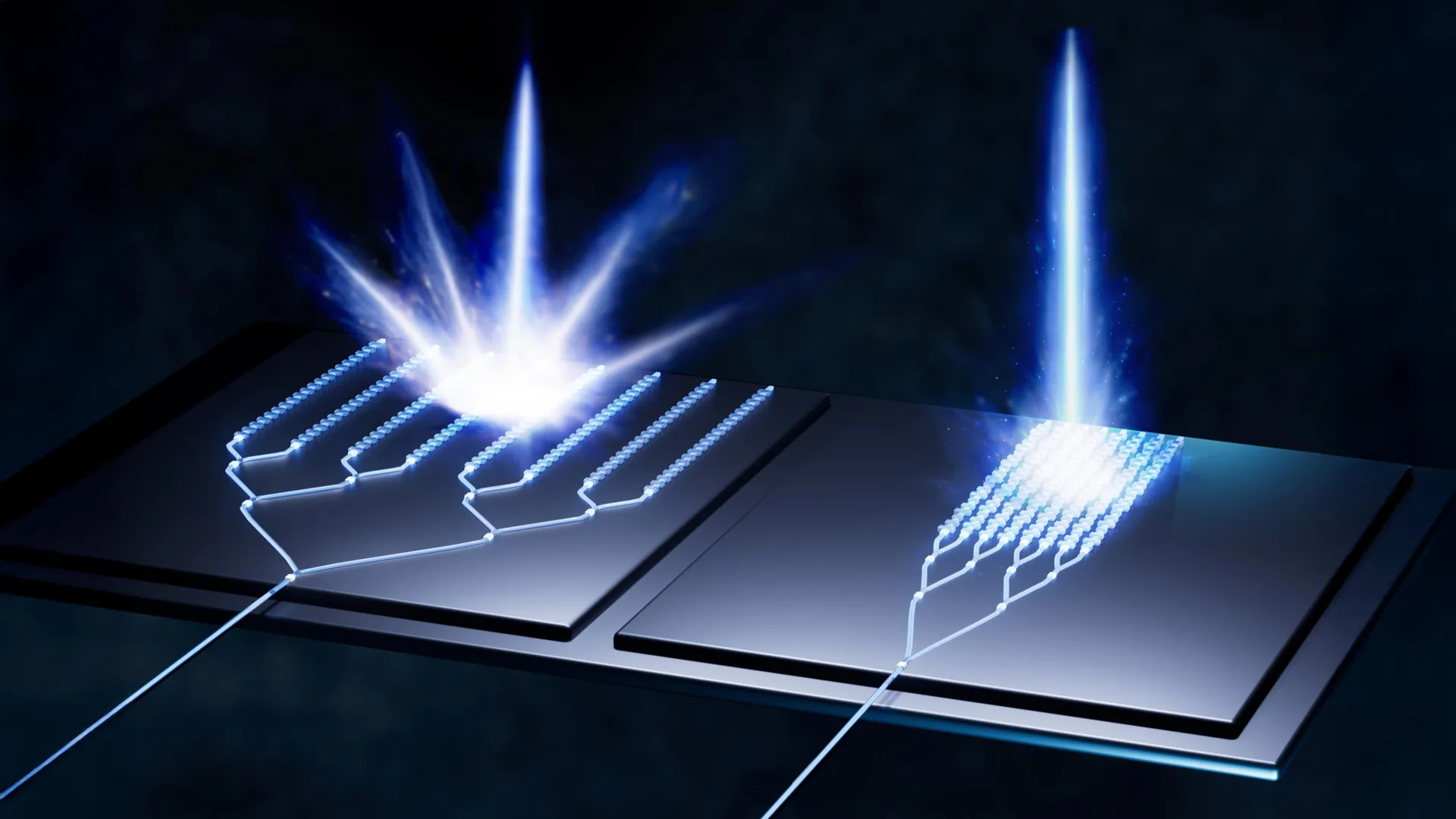

A significant hurdle in the development of compact OPAs has been the proximity of the antennas. When placed too close together, neighboring antennas can electromagnetically couple with one another, leading to the scrambling of the light they produce. Historically, engineers have attempted to mitigate this interference by increasing the spatial separation between antennas. However, this wider spacing introduces a new set of complications. When antennas are positioned too far apart, the array tends to generate multiple copies of the same beam, emanating at different angles. The primary beam can only be moved a limited distance before it becomes indistinguishable from these spurious copies.

Andres Garcia Coleto elaborated on this critical limitation: "This limits our field of view, so the autonomous vehicle now only knows what is in front of it for a certain angular range." These undesirable beam copies, often termed grating lobes, can not only confuse the sensor and lead to false detections but also represent a wasteful expenditure of energy that could otherwise be concentrated into the main beam.

To decisively overcome this inherent tradeoff, the MIT researchers conceived and engineered antennas with significantly reduced crosstalk, allowing them to be positioned in close proximity without experiencing strong detrimental coupling.

A Triad of Antenna Designs to Suppress Interference

In conventional OPAs, each antenna typically possesses an identical structure and utilizes the same pattern of corrugations. When these uniformly designed antennas are placed in close proximity, their interaction becomes exceptionally strong. The MIT team, however, ingeniously devised a repeating sequence of three distinct antenna shapes. They meticulously varied the width of the antennas, as well as the size and placement of the corrugations. Due to these geometrical differences, each antenna exhibits a unique propagation coefficient, a parameter that quantifies how light travels through the structure.

Garcia Coleto explained the underlying principle: "Because the antennas have very different propagation coefficients, when we put them close together, essentially each antenna doesn’t ‘see’ the antenna next to it. Therefore, it won’t couple with its neighbor."

Harmonizing Diverse Antennas for Uniform Performance

While successfully mitigating coupling was a crucial step, it was not the sole challenge. Although the antennas required different propagation coefficients to minimize interference, they also needed to emit light in a consistent and predictable manner. The research team meticulously designed the antennas around three fundamental requirements. First, each antenna had to emit an identical amount of light. Second, when receiving the same wavelength of light, every antenna had to release its beam at the same angle. Finally, as the beam was steered across the array, the angle of emission had to change uniformly.

Henry Crawford-Eng highlighted the complexity of this dual objective: "We have this challenge where we require the antennas to have different geometries to reduce the crosstalk, but we need to simultaneously design the antennas to have the same emission characteristics. While it is possible to engineer this, it is extremely difficult because, typically, when antennas are designed with different geometries, they tend to behave differently."

The researchers initiated their work by developing the fundamental electromagnetic theory that governs how radiative modes interact. This theoretical framework then served as a guiding principle for the subsequent design and computer simulation of the antennas. Based on these rigorous calculations, the team successfully manufactured an OPA incorporating the reduced-crosstalk antennas. These antennas were intentionally placed much closer together than in traditional systems, and the completed device underwent extensive experimental testing.

Interference Plummeting from Near Total to a Mere 1 Percent

Under the experimental conditions, a typical OPA would have exhibited coupling levels approaching 100 percent. The innovative MIT design, however, dramatically reduced this coupling to approximately 1 percent, while simultaneously producing a single, exceptionally clean, and precise beam. This system demonstrated the remarkable ability to accurately steer the beam across an expansive field of view without generating any problematic grating lobes. This powerful combination of broad scanning capabilities, minimal interference, and superior beam quality directly addresses one of the most significant obstacles confronting integrated lidar technology.

The researchers are now actively pursuing further refinements to enhance the system’s ability to cover an even wider viewing range. Additionally, they are investigating an alternative approach to achieving wide field-of-view performance that emerged during the development of their foundational theory.

Joyce Poon, a distinguished professor of electrical and computer engineering at the University of Toronto and director of the Max Planck Institute of Microstructure Physics, who was not involved in the research, offered her expert perspective: "This work addresses a longstanding challenge in integrated optical phased arrays: simultaneously achieving both a wide field of view, which requires dense antenna spacing, and high beam quality, which requires low crosstalk between neighboring antennas. The authors solve this problem with an elegant antenna design. Their innovation is an important step forward for chip-scale, solid-state beam-steering technology."

The research was generously supported, in part, by the Semiconductor Research Corporation, the National Science Foundation, an MIT MathWorks Fellowship, the U.S. Department of War, and the MIT Rolf G. Locher Endowed Fellowship. Portions of this groundbreaking work were also facilitated through the utilization of MIT.nano facilities.
