Lidar technology, a cornerstone of modern autonomous systems, employs pulses of infrared light to meticulously gauge distances and construct intricate three-dimensional maps of the surrounding environment. This sophisticated capability empowers self-driving vehicles to discern obstacles in their path with remarkable precision and react instantaneously. However, the widespread adoption of lidar has been hampered by inherent limitations: conventional lidar sensors are frequently bulky, prohibitively expensive, and often incorporate delicate moving components susceptible to wear and tear over time. These constraints have restricted their practical application in a broader spectrum of scenarios. Now, a groundbreaking advancement from researchers at the Massachusetts Institute of Technology (MIT) is poised to shatter these barriers, heralding the advent of lidar sensors that are not only smaller and more resilient but also entirely devoid of any moving parts. This revolutionary leap forward is centered on a novel silicon-photonics chip, a sophisticated semiconductor device engineered to manipulate light rather than conventional electrical signals.
The efficacy of lidar systems is intrinsically linked to their ability to comprehensively scan their surroundings. Existing lidar systems that leverage silicon-photonics chips, while offering the promise of solid-state operation, have typically been constrained by a narrow field of view. This limitation means they struggle to effectively survey areas situated towards the periphery of the scene, a critical deficiency for dynamic environments like roadways. Previous endeavors to broaden this scanning range have often inadvertently introduced undesirable noise into the measurements and compromised the overall accuracy of the distance calculations. The MIT team, undeterred by these challenges, has engineered an ingenious solution that addresses these persistent issues head-on. Their innovation lies in the creation of an array of integrated antennas meticulously designed to drastically minimize unwanted crosstalk. Crosstalk, in this context, refers to the disruptive interference that occurs when neighboring antennas inadvertently interact with each other, corrupting the outgoing light signals. This novel design allows the chip to scan across a significantly wider field of view while simultaneously producing substantially less noise compared to other silicon-photonics-based lidar methodologies.
This remarkable advancement holds the potential to catalyze the development of far more capable and versatile lidar sensors, opening doors to a host of demanding applications. Beyond the realm of autonomous vehicle navigation, where a wider view is paramount for enhanced safety and performance, these new sensors could revolutionize aerial mapping, offering unprecedented detail and coverage. Furthermore, their compact size and durability make them ideally suited for the rigorous monitoring of dynamic environments such as construction sites, where constant environmental assessment is crucial. Jelena Notaros, the esteemed Robert J. Shillman Career Development Associate Professor of Electrical Engineering and Computer Science (EECS) at MIT, a distinguished member of the Research Laboratory of Electronics, and the senior author of the seminal paper detailing this innovation, expressed profound optimism about its implications. "The functionality we demonstrated in this work solves a fundamental problem for integrated optical-phased-array technology, enabling future lidar sensors that can achieve significantly higher performance than we could demonstrate previously," Professor Notaros stated, underscoring the magnitude of their achievement.
The research paper, published recently in the prestigious journal Nature Communications, features lead author and EECS graduate student Henry Crawford-Eng, alongside a dedicated team of EECS graduate students: Andres Garcia Coleto, Benjamin M. Mazur, Daniel M. DeSantis, and Tal Sneh. Their collective efforts have culminated in a breakthrough that could redefine the landscape of sensor technology.
To fully appreciate the significance of this new lidar chip, it’s essential to understand the fundamental principles of how lidar maps its surroundings. Many traditional lidar systems rely on a rather cumbersome, large rotating unit to precisely direct light pulses across a scene. When these light pulses encounter nearby objects, they reflect back towards the sensor. The analysis of these returning signals provides the crucial data required to reconstruct a detailed and accurate map of the environment.
Silicon-photonics-based lidar, however, operates on a fundamentally different paradigm. Instead of physically rotating a mechanical device, these systems electronically scan a beam of light in multiple directions using a sophisticated mechanism known as an integrated optical phased array (OPA). At the heart of an OPA lies an array of integrated antennas. Each antenna is endowed with tiny, regularly spaced variations along its length, referred to as corrugations. These corrugations serve a critical function: they cause light from an input source to scatter upward and exit the photonic chip. The direction of this outgoing beam can be precisely controlled by manipulating the phase of the light transmitted to each individual antenna. By subtly altering these phases, engineers can effectively steer the beam without any need for physical movement, a key attribute for solid-state lidar.

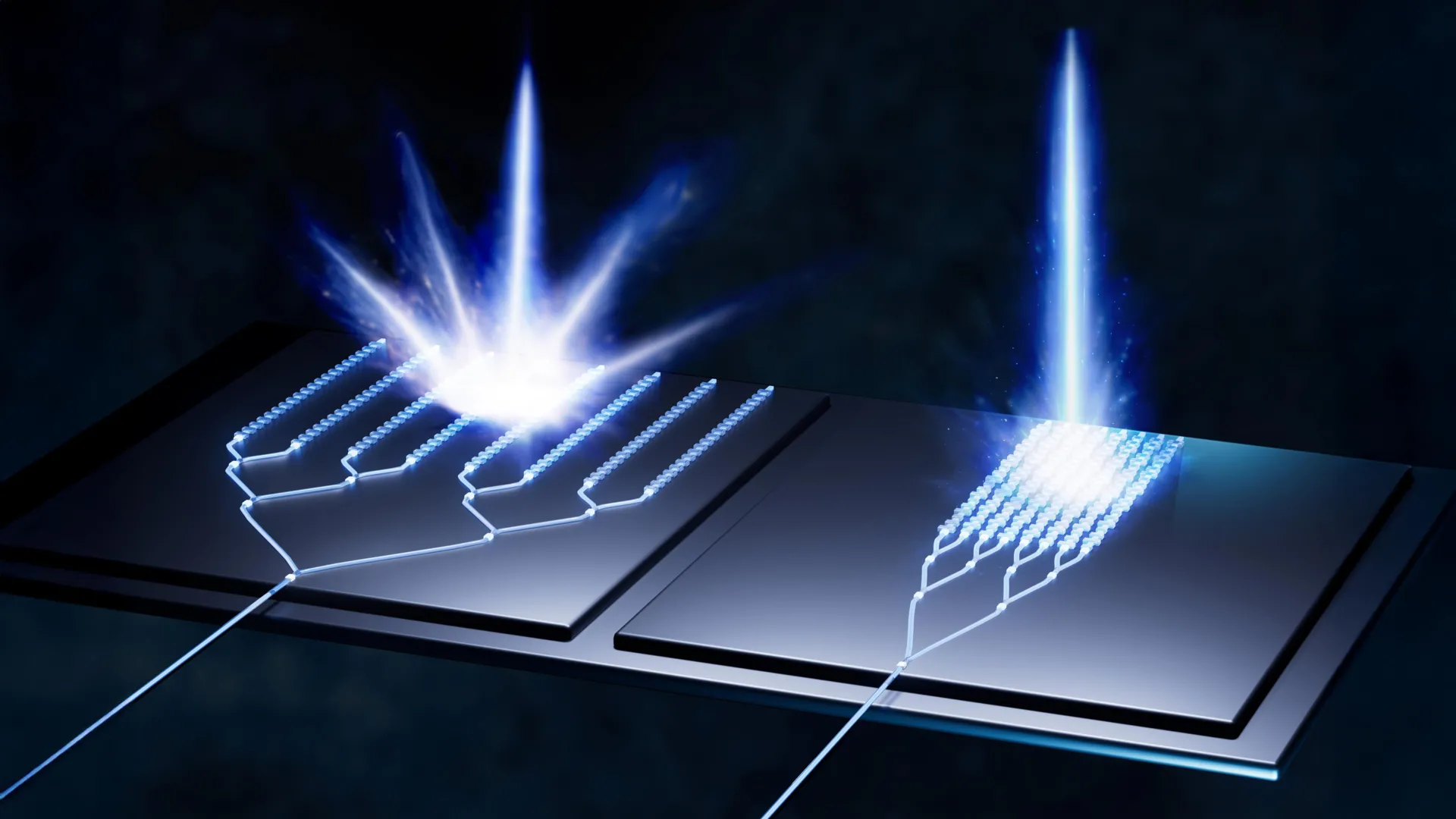

However, the very principle of closely packing these antennas to achieve a compact design introduces a significant technical hurdle. When antennas are positioned too close together, they can inadvertently couple with each other, leading to a scrambling of the light they produce. Historically, engineers have circumvented this interference issue by increasing the spacing between antennas. Yet, this wider spacing introduces a new set of complications. When antennas are spaced too far apart, the OPA begins to generate multiple copies of the same beam, albeit at different angles. The primary beam, the one intended for accurate measurement, can only be moved a limited distance before it becomes indistinguishable from these spurious copies. Andres Garcia Coleto, a graduate student involved in the research, explained the practical implication of this limitation: "This limits our field of view, so the autonomous vehicle now only knows what is in front of it for a certain angular range." These unwanted beam copies, often referred to as grating lobes, can significantly confuse the sensor, leading to false detections and wasting valuable energy that could otherwise be directed into the main, useful beam.
To overcome this fundamental trade-off between wide scanning and beam quality, the MIT researchers embarked on a quest to develop antennas with inherently reduced crosstalk, allowing them to be positioned much closer together without experiencing strong coupling. In a conventional OPA, all antennas are manufactured with an identical structure and employ the same pattern of corrugations. When these identical antennas are placed in close proximity, their interaction becomes exceptionally strong, leading to the problematic crosstalk.
The innovative approach taken by the MIT team involved the creation of a repeating sequence of three distinct antennas, each possessing a unique shape. They ingeniously altered the width of the antennas, as well as the size and placement of the corrugations. Because these antennas exhibit different geometries, each one also possesses a unique propagation coefficient, a parameter that precisely describes how light travels through the structure. As Garcia Coleto elaborated, "Because the antennas have very different propagation coefficients, when we put them close together, essentially each antenna doesn’t ‘see’ the antenna next to it. Therefore, it won’t couple with its neighbor." This fundamental difference in how the antennas interact with each other is the key to mitigating crosstalk.
While reducing coupling was a crucial step, it was not the sole challenge. Despite the necessity for different propagation coefficients to minimize interference, the antennas still needed to emit light in a consistent and predictable manner. The research team meticulously designed the antennas around three essential performance criteria. Firstly, each antenna had to emit precisely the same amount of light. Secondly, every antenna was required to release its beam at the same angle when receiving the same wavelength of light. Finally, the angle of emission needed to change uniformly across the entire array as the beam was steered. Henry Crawford-Eng, the lead author, highlighted the complexity of this balancing act: "We have this challenge where we require the antennas to have different geometries to reduce the crosstalk, but we need to simultaneously design the antennas to have the same emission characteristics. While it is possible to engineer this, it is extremely difficult because, typically, when antennas are designed with different geometries, they tend to behave differently."
To achieve this delicate balance, the researchers first developed the foundational electromagnetic theory that describes how radiative modes couple. This theoretical framework then served as their guide for the subsequent design and computer simulation of the antennas. Based on these rigorous calculations, the team successfully manufactured an OPA incorporating their novel, reduced-crosstalk antennas. Crucially, these antennas were positioned significantly closer together than in conventional systems. The completed device was then subjected to extensive experimental testing.
The results of these experiments were nothing short of remarkable. Under the tested conditions, a typical OPA would have exhibited coupling in the vicinity of 100 percent, indicating severe interference. The MIT design, however, successfully reduced this coupling to a mere 1 percent, all while maintaining the generation of a single, clean, and highly precise beam. The system demonstrated the ability to accurately steer this beam across an impressively broad field of view without producing any detrimental grating lobes. This unprecedented combination of wide-angle scanning, exceptionally low interference, and robust beam quality directly addresses one of the most significant obstacles that has historically hindered the advancement of integrated lidar technology.
The researchers are not resting on their laurels; they have already outlined their next steps. They plan to further refine their method to enable the system to cover an even wider viewing range, pushing the boundaries of what is currently possible. Furthermore, they are actively investigating another promising approach to achieving wide field-of-view performance that emerged during their theoretical development process. Joyce Poon, a distinguished professor of electrical and computer engineering at the University of Toronto and director of the Max Planck Institute of Microstructure Physics, who was not involved in this particular research, offered her expert perspective, stating, "This work addresses a longstanding challenge in integrated optical phased arrays: simultaneously achieving both a wide field of view, which requires dense antenna spacing, and high beam quality, which requires low crosstalk between neighboring antennas. The authors solve this problem with an elegant antenna design. Their innovation is an important step forward for chip-scale, solid-state beam-steering technology."
The groundbreaking research was made possible through the support of several key funding bodies, including the Semiconductor Research Corporation, the National Science Foundation, an MIT MathWorks Fellowship, the U.S. Department of War, and the MIT Rolf G. Locher Endowed Fellowship. Additionally, some of the experimental work was conducted utilizing the advanced facilities at MIT.nano, underscoring the collaborative and resource-intensive nature of such cutting-edge scientific endeavors.
