MIT researchers have unveiled a groundbreaking silicon-photonics chip that could revolutionize lidar technology, paving the way for smaller, more durable, and significantly more capable sensors for autonomous vehicles and a host of other applications. This innovative approach tackles a fundamental limitation in current lidar systems, which often struggle with narrow fields of view and susceptibility to interference, thereby hindering their widespread adoption in complex environments. The breakthrough centers on a novel antenna design within the chip that dramatically reduces unwanted interference, allowing for a much broader scanning range without sacrificing accuracy or generating disruptive noise.
Lidar, an acronym for Light Detection and Ranging, operates by emitting pulses of infrared light and measuring the time it takes for these pulses to reflect off objects in the environment. This precise timing allows lidar systems to create highly detailed three-dimensional maps, crucial for autonomous vehicles to perceive their surroundings, identify obstacles, and navigate safely. However, traditional lidar sensors often rely on bulky, mechanically rotating components. These moving parts are not only prone to wear and tear, impacting long-term reliability, but also contribute to the overall size and cost of the technology, making it less practical for mass deployment. Furthermore, many of these conventional systems are limited in their ability to scan the entire periphery of a vehicle effectively, creating blind spots or requiring multiple sensors to cover a sufficient area.
The MIT team’s innovation lies in the realm of silicon photonics, a field that leverages semiconductor manufacturing techniques to control light rather than electrical signals. This allows for the integration of complex optical functions onto a single chip, promising smaller, more power-efficient, and cost-effective lidar solutions. While silicon-photonics-based lidar systems have shown promise, they have historically been plagued by a narrow field of view. This limitation arises from the inherent challenges of scanning a wide area using integrated optical phased arrays (OPAs), the core technology behind these solid-state lidar systems. Attempts to expand the scanning range in previous OPA designs often resulted in increased noise and a degradation of measurement accuracy.
The critical hurdle addressed by the MIT researchers is the problem of "crosstalk" between neighboring antennas on the OPA chip. In an OPA, a series of integrated antennas are used to steer a beam of light electronically. Each antenna is designed with tiny variations, or "corrugations," that scatter light. By precisely controlling the phase of the light sent to each antenna, the direction of the emitted beam can be manipulated without any physical movement. However, when these antennas are placed close together to achieve a wider scanning angle, they can interfere with each other, a phenomenon known as crosstalk. This interference can scramble the emitted light, leading to a loss of signal integrity and inaccurate readings.

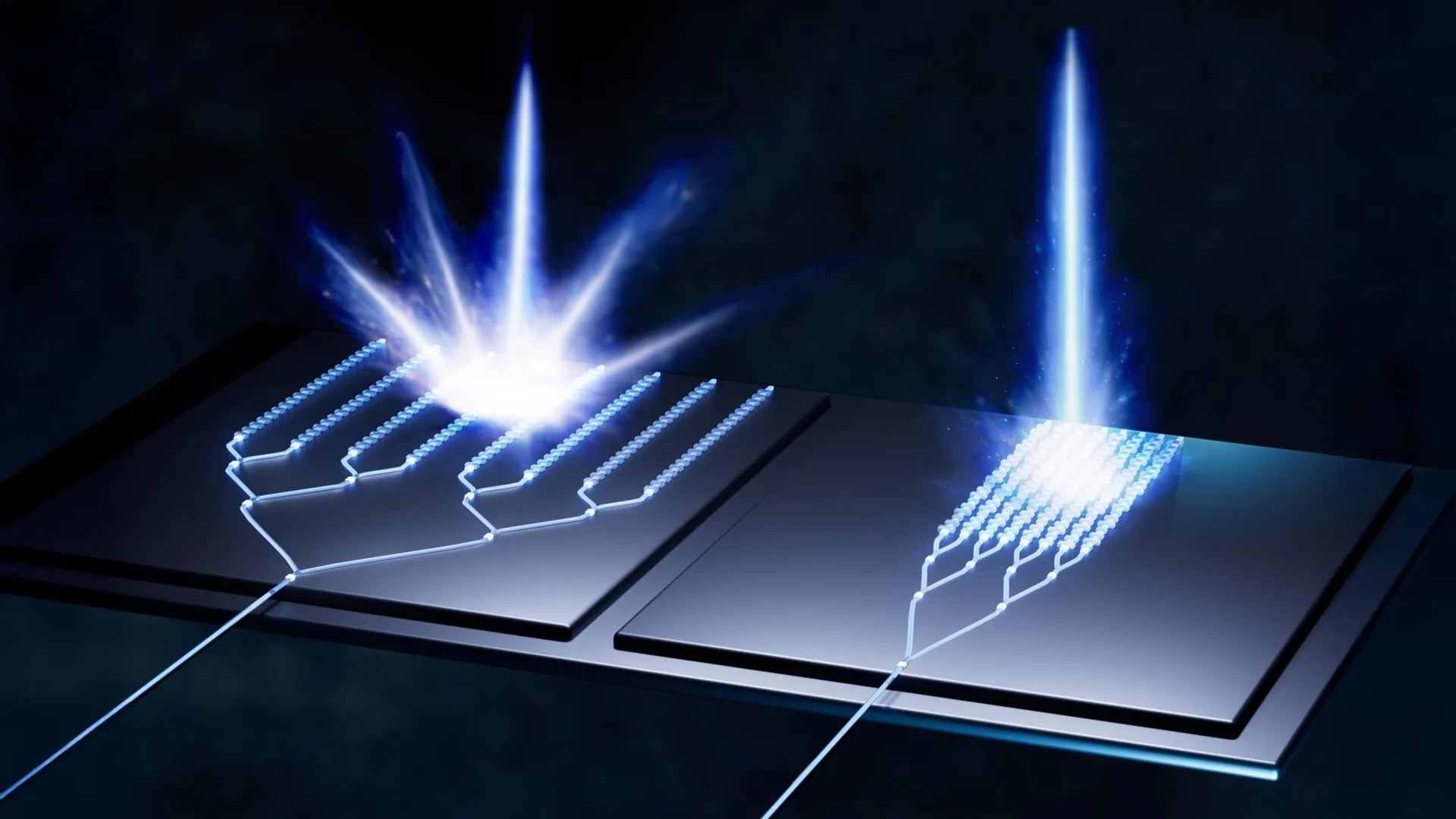

Traditionally, engineers have mitigated crosstalk by increasing the spacing between antennas. However, this wider spacing introduces another problem: the generation of "grating lobes." These are unwanted, weaker copies of the main beam that appear at different angles. As the main beam is steered, it can become indistinguishable from these grating lobes, effectively limiting the usable field of view and leading to potential false detections and wasted energy. This presents a fundamental trade-off: close antenna spacing leads to high crosstalk, while wide spacing leads to grating lobes and a restricted field of view.
The MIT team’s breakthrough is an elegant solution to this long-standing dilemma. They developed an array of integrated antennas with significantly reduced crosstalk, allowing them to be placed much closer together without strong coupling. This enables a broader scanning range while maintaining the integrity of the main beam. The key to their success lies in the design of the antennas themselves. Instead of using identical antennas, they created a repeating pattern of three distinct antenna shapes. By altering the width of the antennas and the size and placement of the corrugations, each antenna geometry was engineered to have a different "propagation coefficient."
"Because the antennas have very different propagation coefficients, when we put them close together, essentially each antenna doesn’t ‘see’ the antenna next to it. Therefore, it won’t couple with its neighbor," explained Andres Garcia Coleto, a graduate student in EECS and a lead author on the study. This intentional geometric variation prevents the strong, unwanted interactions that plague conventional OPA designs.
However, creating antennas with different geometries presented a new challenge: ensuring they all emitted light in a consistent and predictable manner. The researchers meticulously designed the antennas to meet three crucial requirements. First, each antenna had to emit the same amount of light. Second, when receiving the same wavelength of light, every antenna needed to release its beam at the same angle. Finally, as the beam was steered across the array, the angle of emission had to change uniformly.
"We have this challenge where we require the antennas to have different geometries to reduce the crosstalk, but we need to simultaneously design the antennas to have the same emission characteristics," said Henry Crawford-Eng, a graduate student in EECS and the lead author of the paper. "While it is possible to engineer this, it is extremely difficult because, typically, when antennas are designed with different geometries, they tend to behave differently."
The team’s success was built upon a solid foundation of electromagnetic theory. They developed a theoretical framework describing how radiative modes couple, which then guided their computer simulations and the physical design of the antennas. This rigorous approach allowed them to overcome the complexities of engineering diverse antenna geometries to behave in a unified manner.
The experimental results were compelling. In their tests, the MIT-designed OPA achieved a dramatic reduction in coupling, falling from an estimated 100% in a typical OPA to approximately 1%. This low interference resulted in a single, clean, and precise beam. Crucially, the system was able to steer this beam across a broad field of view without producing any disruptive grating lobes. This combination of wide scanning capability, minimal interference, and high beam quality represents a significant leap forward for chip-scale, solid-state beam-steering technology.
"The functionality we demonstrated in this work solves a fundamental problem for integrated optical-phased-array technology, enabling future lidar sensors that can achieve significantly higher performance than we could demonstrate previously," stated Jelena Notaros, the Robert J. Shillman Career Development Associate Professor of Electrical Engineering and Computer Science (EECS) at MIT and the senior author of the paper.
The implications of this advancement are far-reaching. For autonomous vehicles, it means the potential for more affordable, compact, and robust lidar systems that can provide a more comprehensive understanding of their surroundings. This enhanced perception is vital for navigating complex urban environments, adverse weather conditions, and unpredictable traffic scenarios. Beyond automotive applications, the technology holds promise for aerial mapping, where wider field-of-view sensors can cover larger areas more efficiently; for construction site monitoring, enabling more detailed and continuous progress tracking; and for robotics, allowing for more sophisticated environmental interaction and navigation.
The researchers are not resting on their laurels. They plan to further refine their method to achieve an even broader viewing range. Additionally, they are exploring another promising avenue for wide field-of-view performance that emerged during their theoretical investigations.
Joyce Poon, a professor of electrical and computer engineering at the University of Toronto and director of the Max Planck Institute of Microstructure Physics, who was not involved in the study, lauded the work as an "important step forward." She highlighted that the MIT team "solve[d] this problem with an elegant antenna design," addressing the critical challenge of simultaneously achieving a wide field of view and high beam quality in integrated optical phased arrays.
This research, supported in part by the Semiconductor Research Corporation, the National Science Foundation, an MIT MathWorks Fellowship, the U.S. Department of War, and the MIT Rolf G. Locher Endowed Fellowship, and carried out using MIT.nano facilities, signifies a pivotal moment in the evolution of lidar technology, bringing us closer to a future where advanced perception systems are seamlessly integrated into our daily lives.
