At the heart of this innovation lies a novel silicon-photonics chip, a sophisticated semiconductor device engineered to manipulate light rather than electrical signals. While existing silicon-photonics lidar systems have demonstrated promise, they have historically been constrained by a narrow field of view, struggling to adequately scan peripheral areas of a scene. Previous attempts to broaden this viewing range have often resulted in increased noise and a detrimental reduction in measurement accuracy, presenting a persistent dilemma for engineers. The MIT team has ingeniously circumvented these obstacles by developing an array of integrated antennas specifically designed to minimize unwanted crosstalk, a phenomenon where adjacent antennas interfere with each other’s signals. This elegant design empowers the chip to scan a significantly wider field of view while simultaneously producing substantially less noise compared to other silicon-photonics-based methodologies.
This breakthrough holds immense potential for the development of more capable and versatile lidar sensors, extending their utility beyond autonomous vehicle navigation to encompass demanding applications such as aerial mapping and the meticulous monitoring of construction sites. "The functionality we demonstrated in this work solves a fundamental problem for integrated optical-phased-array technology, enabling future lidar sensors that can achieve significantly higher performance than we could demonstrate previously," states Jelena Notaros, the Robert J. Shillman Career Development Associate Professor of Electrical Engineering and Computer Science (EECS) at MIT, a distinguished member of the Research Laboratory of Electronics, and the senior author of the seminal paper detailing this groundbreaking innovation.
The research team’s meticulous work also features lead author and EECS graduate student Henry Crawford-Eng, alongside fellow EECS graduate students Andres Garcia Coleto, Benjamin M. Mazur, Daniel M. DeSantis, and Tal Sneh. Their pivotal findings were recently published in the prestigious scientific journal Nature Communications, marking a significant advancement in the field.
To fully appreciate the magnitude of this development, it’s crucial to understand the fundamental principles of lidar mapping. Many traditional lidar systems employ a large, rotating unit that directs laser pulses across a given environment. When these light pulses encounter objects, they reflect back towards the sensor. The analysis of these returning signals allows for the reconstruction of a highly detailed three-dimensional map of the surroundings.
Silicon-photonics-based lidar operates on a different paradigm. Instead of relying on mechanical rotation, it electronically scans a beam of light in multiple directions using a system known as an integrated optical phased array (OPA). At the core of an OPA are an array of integrated antennas. Each antenna is characterized by tiny, regularly spaced variations along its length, referred to as corrugations. These corrugations are instrumental in scattering light from an input source, directing it upward and out of the photonic chip. The direction of the outgoing beam is precisely controlled by manipulating the phase of the light transmitted to each antenna. By adjusting these phases, the angle at which the array emits light can be altered, enabling beam steering without any physical movement of components.

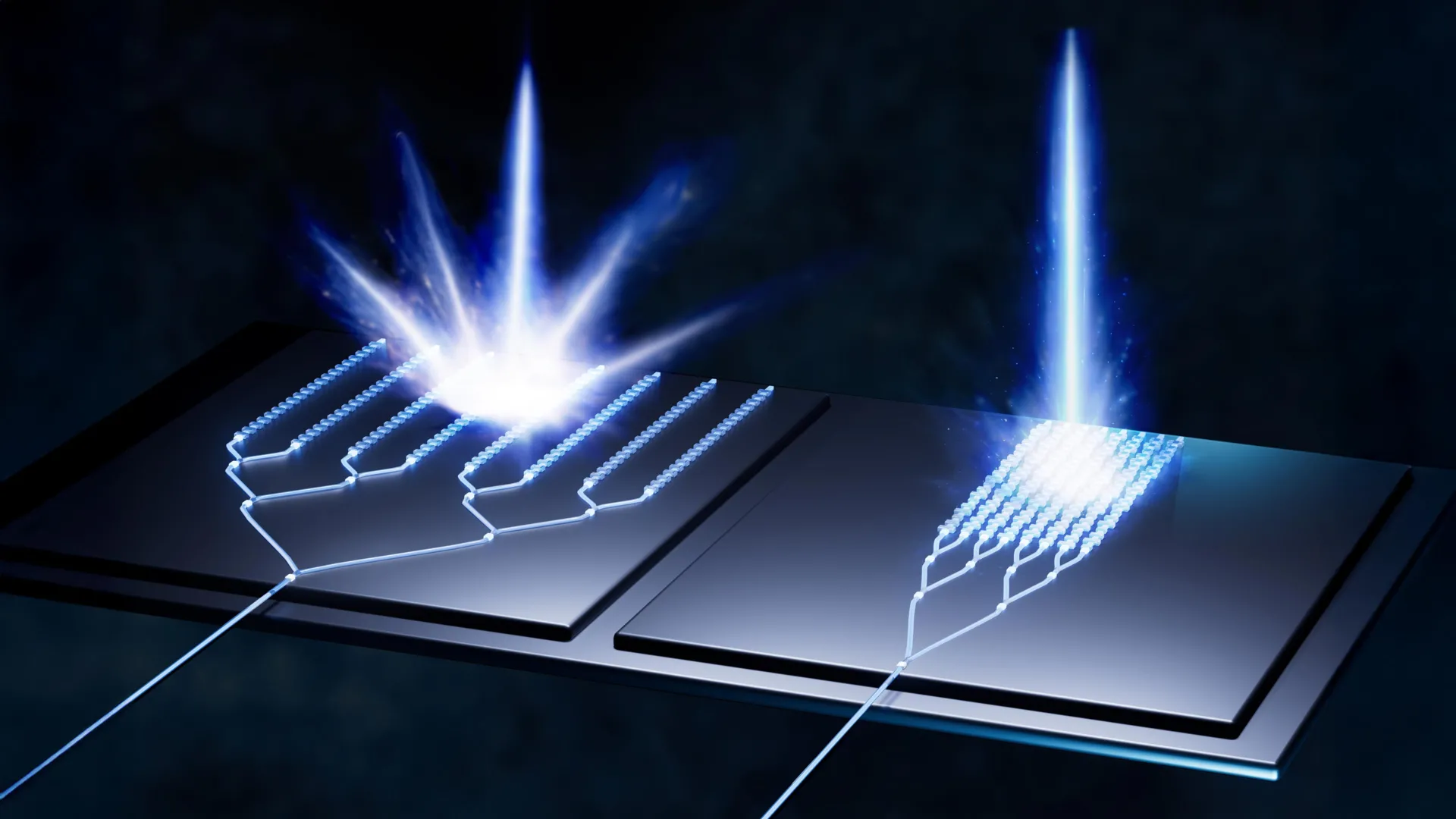

However, a significant hurdle in the design of OPAs has been the challenge of antenna spacing. Placing antennas too close together leads to a phenomenon known as coupling, where neighboring antennas interfere with each other, corrupting the light they produce. Historically, engineers have sought to mitigate this interference by increasing the distance between antennas. Yet, this wider spacing introduces its own set of complications. When antennas are excessively separated, the array can generate multiple copies of the primary beam, appearing at different angles. The main beam’s ability to be steered over a wide range is then limited, as it becomes difficult to distinguish from these extraneous copies. "This limits our field of view, so the autonomous vehicle now only knows what is in front of it for a certain angular range," explains Garcia Coleto, a key member of the research team. These undesirable beam copies, termed grating lobes, can not only confuse the sensor and lead to false detections but also consume energy that could otherwise be concentrated in the main beam.
The MIT researchers have ingeniously overcome this inherent trade-off by developing antennas with significantly reduced crosstalk, allowing them to be positioned much closer together without exhibiting strong coupling. In conventional OPAs, all antennas possess an identical structure and utilize the same corrugation pattern. This uniformity, when antennas are placed in close proximity, results in very strong interactions. The MIT team, in contrast, devised a repeating sequence of three distinct antenna shapes. They meticulously varied the width of the antennas, as well as the size and placement of the corrugations. Because these antennas possess different geometries, each exhibits a unique propagation coefficient, a parameter that quantifies how light propagates through a given structure. "Because the antennas have very different propagation coefficients, when we put them close together, essentially each antenna doesn’t ‘see’ the antenna next to it. Therefore, it won’t couple with its neighbor," elaborates Garcia Coleto.
While mitigating coupling was a critical step, it was not the sole challenge. Despite requiring different propagation coefficients to reduce interference, the antennas still needed to emit light in a consistent and predictable manner. The team meticulously designed the antennas to meet three fundamental requirements. Firstly, each antenna had to emit an equal amount of light. Secondly, every antenna needed to release its beam at the same angle when receiving the same wavelength of light. Finally, the angle of emission had to change uniformly across the entire array as the beam was steered. "We have this challenge where we require the antennas to have different geometries to reduce the crosstalk, but we need to simultaneously design the antennas to have the same emission characteristics. While it is possible to engineer this, it is extremely difficult because, typically, when antennas are designed with different geometries, they tend to behave differently," notes Crawford-Eng.
To address this complexity, the researchers first developed a robust theoretical framework based on electromagnetic principles to describe how radiative modes couple. This theoretical foundation then guided the design and computational simulation of the antennas. Based on these rigorous calculations, the team successfully manufactured an OPA incorporating the reduced-crosstalk antennas. These antennas were positioned at a much denser spacing than typically found in conventional systems, and the resulting device underwent extensive experimental testing.
The experimental results were remarkable. Under the test conditions, a standard OPA would have exhibited coupling levels of approximately 100 percent. The innovative MIT design, however, reduced this coupling to a mere 1 percent, while still producing a single, clean, and precise beam. The system demonstrated the ability to accurately steer this beam across an extensive field of view without the generation of any grating lobes. This exceptional combination of wide-angle scanning, minimal interference, and high beam quality effectively tackles one of the most significant impediments to the advancement of integrated lidar technology.
Looking ahead, the researchers are committed to further refining their method to enable the system to cover an even broader viewing range. They are also actively exploring an alternative approach to achieving wide field-of-view performance that emerged during the development of their underlying theory. Joyce Poon, a distinguished professor of electrical and computer engineering at the University of Toronto and director of the Max Planck Institute of Microstructure Physics, who was not involved in this study, lauded the achievement, stating, "This work addresses a longstanding challenge in integrated optical phased arrays: simultaneously achieving both a wide field of view, which requires dense antenna spacing, and high beam quality, which requires low crosstalk between neighboring antennas. The authors solve this problem with an elegant antenna design. Their innovation is an important step forward for chip-scale, solid-state beam-steering technology."
The groundbreaking research was supported by a consortium of esteemed organizations, including the Semiconductor Research Corporation, the National Science Foundation, an MIT MathWorks Fellowship, the U.S. Department of War, and the MIT Rolf G. Locher Endowed Fellowship. Furthermore, a portion of the research was facilitated through the utilization of MIT.nano facilities, underscoring the collaborative and resource-rich environment that fostered this significant scientific advancement.
