The fundamental challenge lies in the creation of an extremely thin insulating layer, known as the gate dielectric, which is crucial for the operation of any working transistor. This dielectric layer is strategically positioned above the semiconductor material and plays a vital role in precisely controlling the flow of electrons. As transistors continue to shrink, thinning this insulating layer becomes paramount for enhancing electrical control. The inherent difficulty, however, arises when attempting to deposit such thin layers onto atomically thin semiconductors. This process can inadvertently disrupt the delicate interface between the materials, leading to electron scattering and negating the very performance gains that engineers are striving to achieve. For years, researchers have been caught in a difficult trade-off: either prioritize robust control over the transistor gate or safeguard the mobility of charge carriers within the device. Achieving both simultaneously has proven exceptionally challenging.

A groundbreaking new strategy for overcoming this limitation in atomically thin transistors has now emerged from the collaborative efforts of researchers at National Yang Ming Chiao Tung University (NYCU) and TSMC Corporate Research. Their innovative approach focuses on meticulously engineering the interface itself, rather than solely seeking new semiconductor materials. Published in the prestigious journal Nature Electronics, their work demonstrates that by precisely controlling the atomic boundary between a semiconductor and its insulating layer, it is possible to achieve extremely thin dielectrics while maintaining superior electrical performance. Instead of pursuing entirely novel semiconductor materials, the researchers concentrated their efforts on the minute region where these two materials converge – an area that is only a few atoms thick.

Professor Wen-Hao Chang, the study’s corresponding author from NYCU, highlighted the significance of their findings: "For many years, efforts to improve atomically thin transistors have largely focused on discovering better semiconductor materials. Our research shows that the atomic interface between materials can be just as important. By engineering that boundary, we were able to reduce one of the fundamental trade-offs that has limited two-dimensional transistors for many years." This paradigm shift in focus from bulk material properties to interface engineering marks a pivotal moment in the pursuit of next-generation electronics.

The critical importance of the atomic interface in modern chip development cannot be overstated. The relentless drive to shrink transistor components hinges on optimizing every element, with the gate dielectric being one of the most critical. This dielectric layer serves as the electrical separator between the gate electrode and the transistor channel, dictating the efficiency of the transistor’s switching action. While silicon technology has benefited from decades of meticulous refinement, allowing manufacturers to produce highly effective dielectric materials for increasingly miniaturized devices, atomically thin semiconductors present a unique set of challenges. Their surfaces, often lacking the dangling bonds found in bulk silicon, make it inherently difficult to grow an extremely thin and uniform dielectric film.

Traditional deposition techniques can lead to undesirable outcomes such as gaps, defects at the interface, and electrical disorder. These imperfections can significantly impede the movement of charge carriers, thereby diminishing transistor performance. Researchers worldwide have explored various solutions, including the use of different dielectric materials, molecular seed layers, and alternative oxide deposition methods. While these approaches have yielded notable improvements, achieving the trifecta of low equivalent oxide thickness, strong electrostatic control, and high carrier mobility simultaneously has remained an elusive goal. This challenge is particularly pronounced in wafer-scale Chemical Vapor Deposition (CVD)-grown monolayer molybdenum disulfide (MoS₂), a promising 2D semiconductor material.

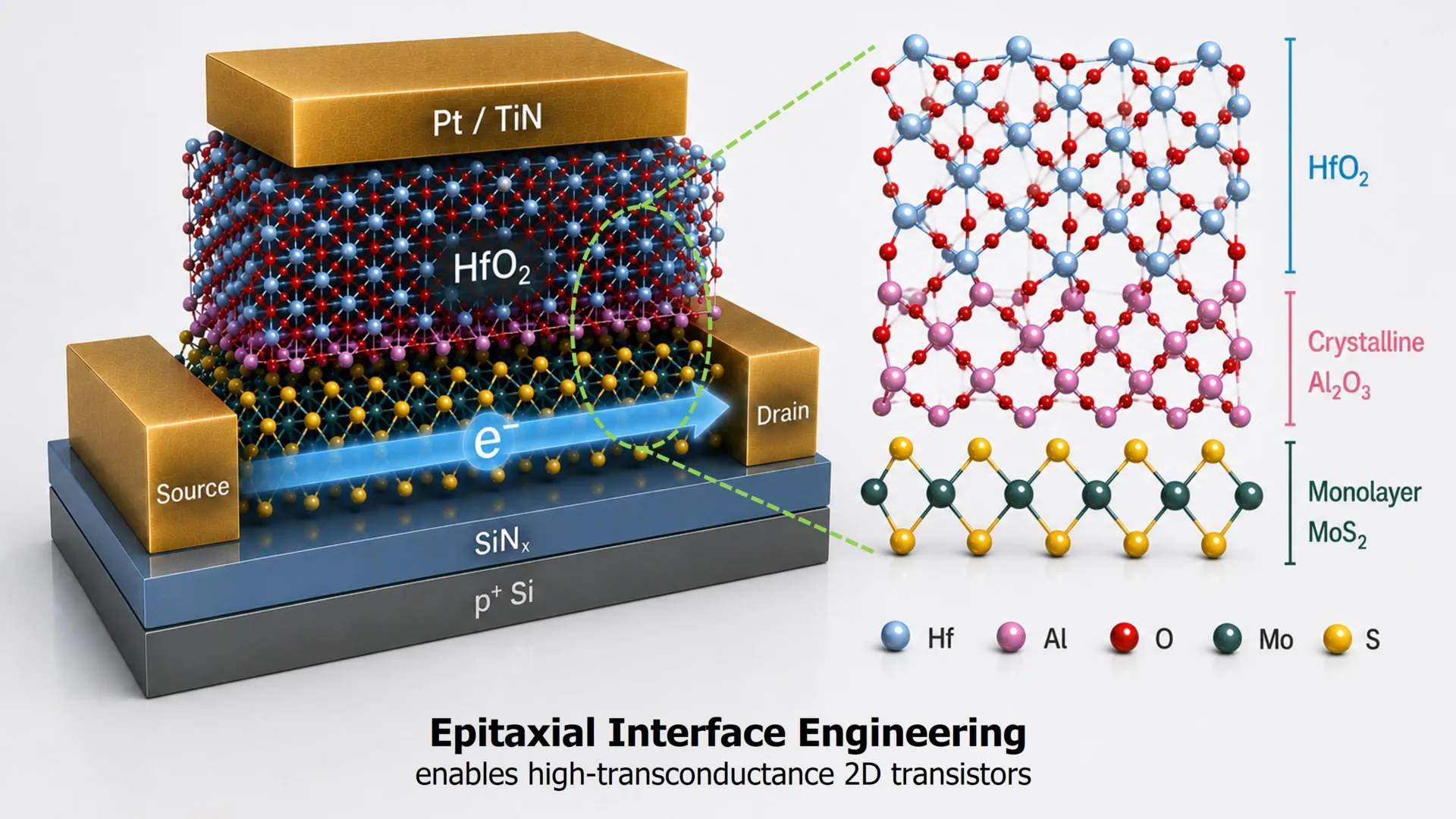

The NYCU team’s breakthrough lies in their innovative approach to redesigning the interface connecting the semiconductor and the gate dielectric, rather than altering either material itself. Their meticulously engineered solution involves first depositing an ultrathin epitaxial aluminum layer directly onto the monolayer MoS₂. This is followed by a carefully controlled oxidation of the aluminum, resulting in an aluminum oxide layer approximately 0.42 nanometers thick. Crucially, this ultrathin layer acts as a sophisticated buffer. Upon this engineered interface, a high-permittivity (high-κ) hafnium oxide gate dielectric is then added.

Despite its diminutive size – a mere fraction of a nanometer – this engineered interface performs two indispensable functions. Firstly, it creates a remarkably smooth and continuous surface, facilitating the uniform growth of the hafnium oxide dielectric over the MoS₂. This uniformity is critical for consistent electrical behavior. Secondly, it acts as an atomic buffer, effectively shielding the semiconductor from unwanted electrical interactions with the dielectric layer. This protection is vital for ensuring that electrons can continue to move efficiently through the transistor channel, maintaining high carrier mobility. In essence, the interface transcends its traditional role of simply separating two materials; it becomes an integral, functional component of the transistor, enabling synergistic cooperation between the constituent materials.

By implementing this novel interface design, the researchers successfully fabricated short-channel top-gate transistors utilizing CVD-grown monolayer MoS₂. These devices exhibited an equivalent oxide thickness of approximately one nanometer, a significant achievement in miniaturization. Rigorous testing revealed several impressive performance characteristics: low leakage current, minimal hysteresis (indicating stable operation), and a maximum transconductance of 0.45 mS μm^-1 in transistors with channel lengths around 100 nanometers.

More profoundly, these transistors achieved a combination of attributes that has been notoriously difficult to attain in atomically thin devices: ultra-thin dielectric scaling, robust electrostatic control, and sustained high carrier transport. The fact that the researchers employed CVD-grown monolayer MoS₂, rather than mechanically exfoliated flakes, further bolsters the practical implications of their work. This choice suggests that their approach brings the technology closer to the material and process requirements necessary for eventual wafer-scale manufacturing, a critical step for commercial viability.

The implications of this research extend beyond the immediate advancement of transistor technology, prompting a fundamental rethinking of how future chips are designed. For decades, the semiconductor industry’s pursuit of improved transistor performance has largely revolved around discovering superior semiconductor materials or relentlessly shrinking device dimensions. However, as transistor components approach atomic scales, the interfaces that separate different materials are gaining unprecedented importance. These regions, though only a few atoms thick, wield considerable influence over the collective performance of the materials they connect. The new findings from NYCU and TSMC add compelling evidence to the growing understanding that precisely controlling these atomic interfaces could become as significant as the development of new semiconductor materials themselves.

Professor Tsung-En Lee, another corresponding author of the study, emphasized this paradigm shift: "When transistor components become only a few atomic layers thick, the interface is no longer simply the boundary between materials; it becomes an active part of the device. Learning to engineer these interfaces with atomic precision opens new opportunities for designing future semiconductor devices that would be difficult to achieve by changing individual materials alone." This perspective underscores the transition from a materials-centric to an interface-centric design philosophy in advanced semiconductor research.

As the semiconductor industry actively seeks pathways to transcend the limitations of traditional silicon scaling, atomically thin materials are increasingly recognized as promising candidates for future low-power logic and advanced electronic systems. While further research and development are undoubtedly necessary to optimize the fabrication process for large-scale manufacturing, the researchers view their interface engineering method as a crucial stride toward the realization of practical two-dimensional electronics. The implications of these findings suggest that future semiconductor breakthroughs may not only depend on the discovery of novel materials but also on our ability to precisely control the atomic boundaries that bind them. As transistors continue their relentless march toward atomic dimensions, these interfaces are poised to emerge as some of the most critical and influential components within the devices themselves, heralding a new chapter in the evolution of computing.
